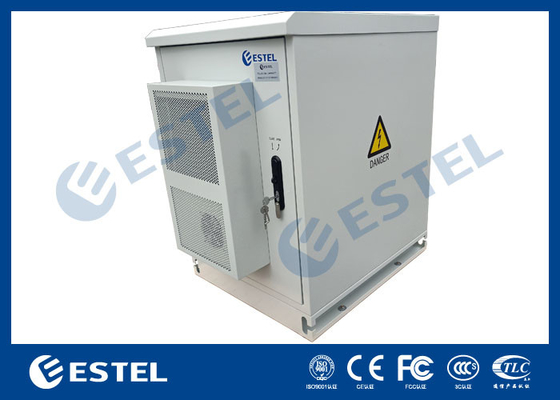

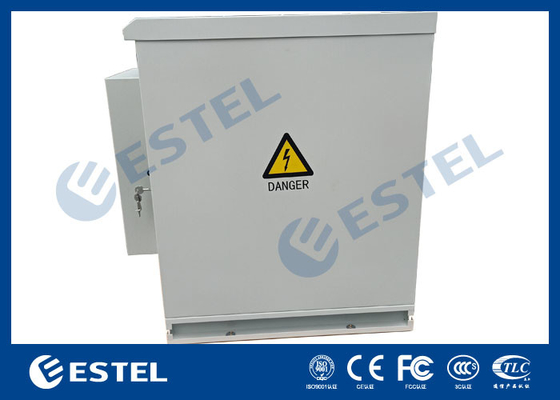

Stainless Steel IP56 Weatherproof Equipment Rack Outdoor Dual Door

1.Technical Parameters

External Dimension W×D×H 7000×800x1000mm

One compartment with one battery tray

Equipment Installation Method:19” standard rack

With two front door:

With anti-theft three point lock for outdoor cabinet (support padlock)

Material :Single wall 1.2mm Stainless Steel with heat insulation

Ingress Protection:IP56

Temperature Control: 48VDC 50HZ 500W Air Conditioner

LED lamp:48VDC LED lamp

Working Temperature: -40°C ~ +55°C

Storage Temperature: -50°C ~ + 70°C

Transport Temperature: -50°C ~ +70°C

Humidity Relative Humidity 5% ~95%

Air Pressure :62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)

Solar Radiation Intensity:1124 × (1±5%)W/m2

Accessories List

2.Cabinet Features

Dustproof, sunproof and rainproof, which is used in outdoor environment.

Compact and light single-walled design
Features an integrated roof
Thickness of plate: 1.2mm
with heat insulation ,Polyester powder coat with UV protection
PUR non-porous gasket—suitable for extreme temperatures

Surface finish: Degreasing, pickling, phosphoric wash, cleaning, and powder coated
Fully welded design, supplied complete, no assembly required


3. Cabinet Instructions

This cabinet is 1000mm High and 700mm Wide and 800mm Deep. This cabinet is mainly used in wireless communication base station, such as 5G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.

4.Optional Accessories


● Cooling solution: We adopt Air conditioner to control temperature ensuring the best working condition inside the cabinet.
● Power distribution unit: can meet the requirements of power system normal operation and equipments maintenance
●Sensors: can monitor internal temperature,humidity,door opened state which based on customer's request.
● Light: two piece LED tube light is for lighting insde and fixed on the top cover.
● Strong rack inside to be equipped with telecom equipments, power source, temperature control device and other attachments.
● Digital display the temperature-setting, temperature alarm, temperature parameters inside and outside, and all kinds of other alarm information, etc.

5.Cabinet Features

-Ingress protection is IP56, we can provide IP56 cabinet based on client’s actual.

-Made of Stainless Steel for better corrosion resistance.

-Front door use standard three-point anti-theft lock. The door lock forms an upper, middle and lower three-point locking structure. For the cabinet with large area, the locking effect is safe and reliable.

-Standard 19 inch mounting posts.

-Doors secured with steel dead locking system lock (support PADLOCK)

-It is installed in the ground root or above ground column base system by "direct burying"

-Cable entry is via the base as standard with side or roof entry available upon request.

6. Cabinet Introduction

• Cabinet Structure

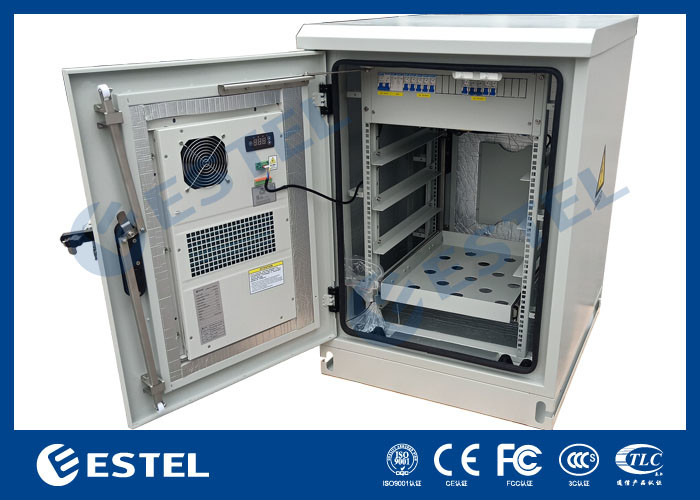

The cabinet includes 19” equipment installation rack. The cabinet includes two air conditioners, one installed on front door and one installed on rear door.

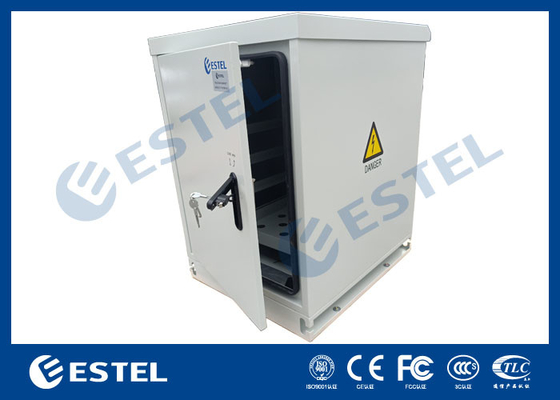

• Cabinet Door and Lock

The cabinet includes one front door and one rear door. The cabinet door uses embedded structure. The door opening angle is larger than 110°and the door limit device can limit the opening angle. The lock is theftproof three point lock, supporting padlock. Each cabinet door include open door sensor, working together with the environment monitoring unit.


7. Technical Specs

• Material: good quality stainless steel
• Surface treatment: degreasing, derusting, rustproof phosphating (or galvanizing), powder coated.
• Cabinet load bearing: ≥700kg
• Ingress protection: IP56
• Insulation resistance: the insulation resistance between grounding devices and cabinet body parts is not lower than 2×104M/500V(DC).
• Withstand voltage: the withstand voltage between grounding devices and cabinet body parts is not lower than 3000V(DC)/1min.
• Mechanical strength: each surface can bear upright pressure >980N; after the door is open, its outer end can bear upright pressure >200N.
• Flame retardance: comply with GB5169.7 test A
