Product Name: | Outdoor Telecom Cabinet | External Dimension: | H500mm×W500mm×D150mm |
---|---|---|---|
Material: | High Quality Galvanized Steel | Type: | Telecom Outdoor Cabinet |
Walls: | Galvanized Steel, 2.0mm Thickness, Single Wall | Insulation Material: | Optional |
Cooling System: | Optional | Door: | With One Front Door |
Cooling: | Optional | Color: | Black |
Form Of Sale: | OEM/ODM | Protection Level: | IP54/IP55/IP65/IP66 |
High Light: | Telecom Outdoor Wall Mounted Cabinet,One Front Door Telecom Outdoor Cabinet,Wall Mounted Telecom Outdoor Cabinet |
The outdoor cabinet is widely used in telecom operators’ mobile telecommunication sites, outdoor small shelters, railway electrical control cabinets, electronic police, communication base stations, outdoor air detection stations, solar control cabinets,etc.
Compact and light single-walled design
Highest protection against corrosion
Features an integrated roof
Thickness of plate: 2.0mm
with heat insulation ,Polyester powder coat with UV protection
PUR non-porous gasket—suitable for extreme temperatures
Fully welded design, supplied complete, no assembly required
Surface finish: Degreasing, pickling, phosphoric wash, cleaning, and powder coated

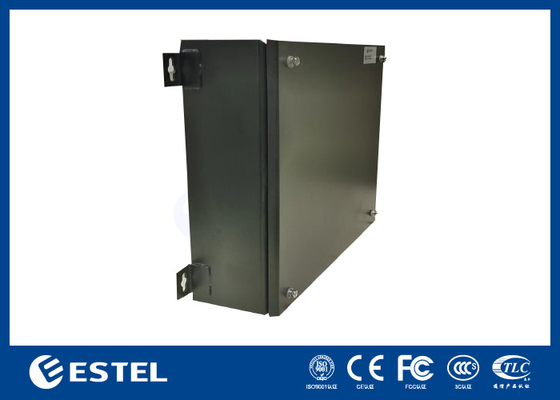

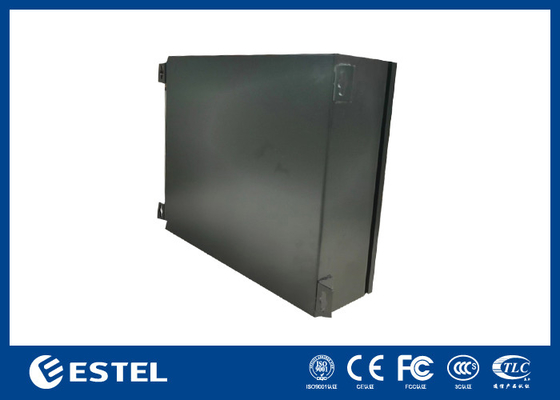

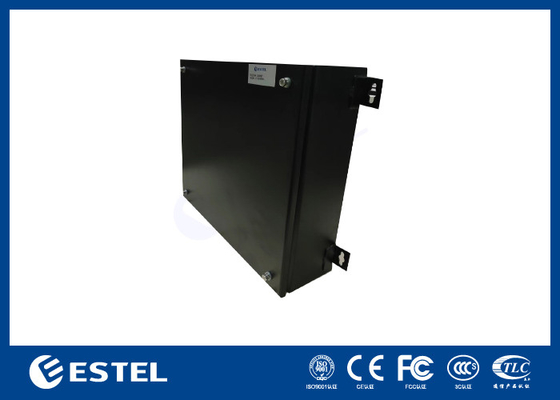

This cabinet is 500mm High and 500mm Wide and 150mm Deep. This cabinet represent a suitable solution for projects with high requirements on stable in-rack climate. They are specifically designed for mounting onto a column.
● Power distribution unit: can meet the requirements of power system normal operation and equipments maintenance
●Sensors: can monitor internal temperature,humidity,fire/smoke,door opened state.
● Light: one piece LED tube light is for lighting insde and fixed on the top cover.
● Strong rack inside to be equipped with telecom equipments, power source, temperature control device and other attachments.
● Digital display the temperature-setting, temperature alarm, temperature parameters inside and outside, and all kinds of other alarm information, etc.
Configuration | Item | Technical Parameter |
Cabinet | Model | ET501550W |
Protection Level | IP66 | |
External Dimension | H500mm×W500mm×D150mm | |
Internal Dimension | one compartment with mounting plate | |
Material | thickness of plate: 2.0mm | |
Insulation | Optional | |
Coating | Polyester powder coating | |
Color | Black | |
Door | One front door fixing with four M8 screw | |
Hinge | Inner hinge | |
Installation Options | Wall mounted | |
Cable Routing | Cable in and out from the bottom of cabinet | |
Cooling | DC air conditioner | Optional |
Power Distribution Unit | AC Input:1×2P/63A AC SPD:SPD40/60KA AC Output:5×1P/16A DC Output:1×1P/32A,2×1P/16A,2×1P/6A | |
Sensors(Optional) | 2pcs × Door sensor, 1pc ×temperature and humidity sensor | |
Others(Optional) | 48VDC LED lamp for illumination. 2pcs | |
Environment | Working Temperature | -40℃ ~+55℃ (+Solar Radiation) |
Storage Temperature | -40℃~+70℃ | |
Working Humidity | 5%~95%(No condensation) | |
Working Altitude | 0~4000 meters |

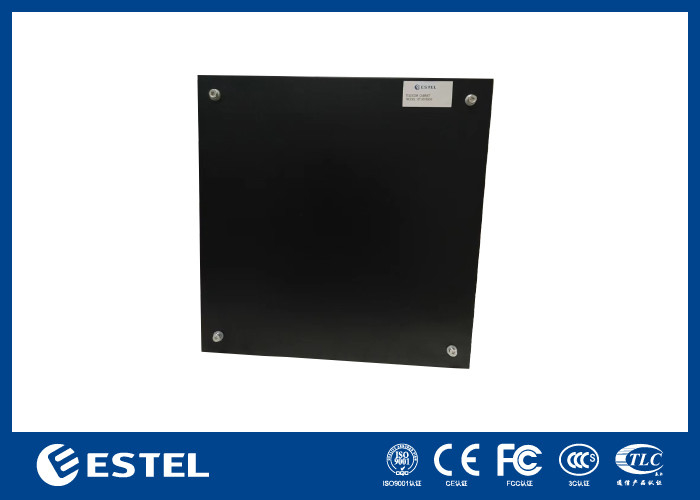

The cabinet includes one front door.
The cabinet includes one front door. The cabinet door uses embedded structure. The door fixing with four M8 screw.
(1) Applicable environment conditions:
Operating temperature: -40°C ~ + 55°C
Storage temperature: -50°C ~ + 70°C
Transport temperature: -50°C ~ + 70°C
Relative humidity (RH): 5%~99%
Air pressure: 62kPa ~ 101kPa (similar to 0m ~ 5000m altitude)
Mechanical strength: each surface can bear upright pressure >980N; after the door is open, its outer end can bear upright pressure >200N.
