Cabinet External Size: | W×D×H 900×900×2100mm | Protection Level: | IP55 ,Waterproof,dust Proof |
---|---|---|---|
Modle: | ET9090210UP | Cooling System: | Air Conditioner Or Fans,Heat Exchanger,500W 1000W 1500W 2000W Compressed Air Conditioner,Door Installed Heat Exchanger / AC / TEC |
Color: | RAL7035 Grey | Door: | One Front Door |
Integrated Accessories: | PDU, EMU | Material: | Galvanized Steel, Single Wall With Insulation |
Cabinet Lock: | Anti-theft Three Point Lock(support Padlock) | Surface Treatment: | Outdoor Anticorrosion Powder Coating |
Type: | Outdoor Telecom Cabinet | Application: | Telecommunication,base Station,Electronic Ect,Outdoor Electronic Equipment,FTTX Network/Telecom |
High Light: | Integrated PDU Outdoor Telecom Cabinet,Telecom Cabinet With Power Distribution,Telecom Cabinet With Envirenmental Monitoring |

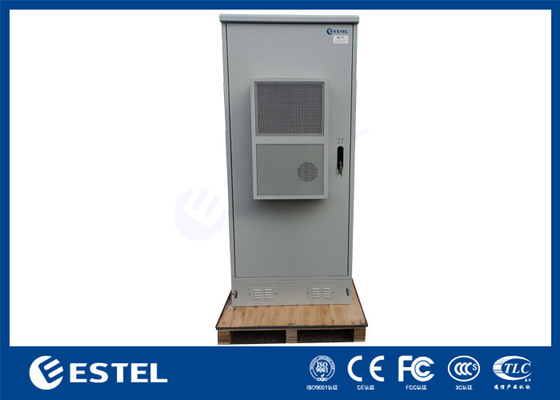

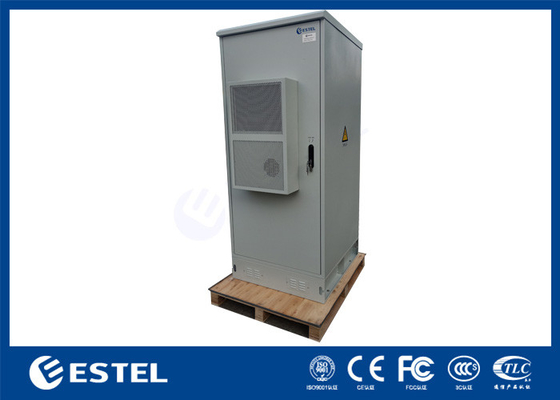

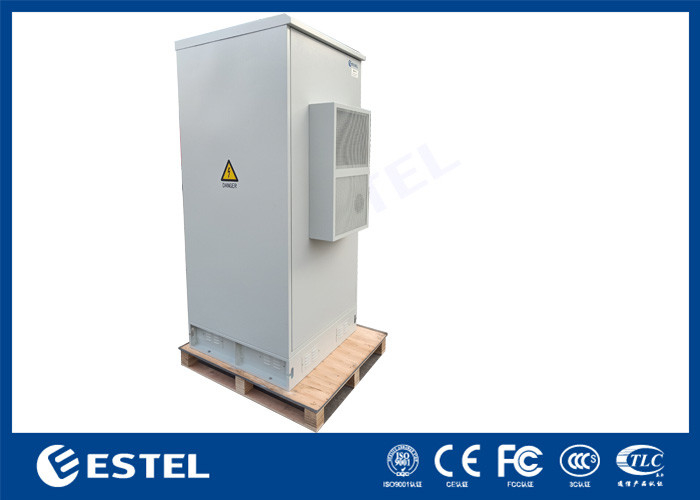

The cabinet is made of galvanized steel, double wall, thickness: 1.2mm, with 20mm PEF.

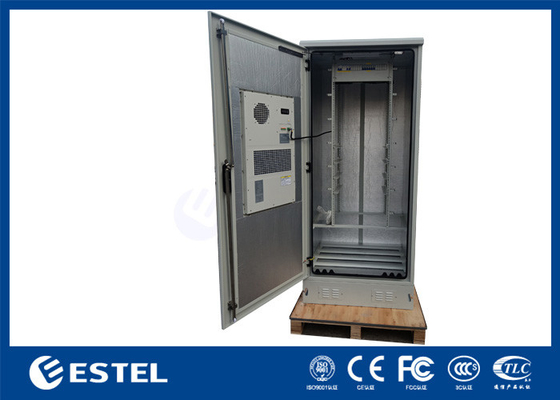

The cabinet includes 19” rail for equipment installation.
The cabinet includes one front door, totally one door.
The cabinet door uses embedded structure.
The door opening angle is up to 110°and the door limit device can limit the opening angle. The lock is theftproof three point lock, supporting padlock. Include keys for opening the door.
● Fully welded design; supplied complete, ready to go
● Lockable front door
● Rain hood included
● Sealed bottom cable entry gland
● Adjustable 19” mounting rails front and rear
● Grounding bar
● Front door rubber seal
● Cabinet design allows natural wind cooling through filtered vents on front door
● All fixings are internal to the cabinet to provide a secure solution
● Come with plinth for mounting on the floor ground, with cable gromments for the cabling
● Available in colours, Grey, Green or customized colors
2.Cabinet Technical Parameter
Configuration | Item | Technical Parameter | |||
Cabinet | Model | ET9090210UP | |||
Protection Level | IP55 | ||||
External Dimension | H2100mm×W900mm×D900mm ( can be customized) | ||||
Internal Dimension | 19 inch rack | ||||
Material |
Galvanized steel, 1.2mm thickness, single wall. Thickness of bearing parts: 2.0mm |
||||
Insulation | 20mm PEF | ||||
Coating | Polyester powder coating | ||||
Color | RAL7035 | ||||
Lock | Anti-theft three-point locking system | ||||
Hinge | Inner hinge | ||||
Installation Options | Floor mounted | ||||
Cable Routing | Cable in and out from the bottom of cabinet | ||||
Maintenance | One front door, front maintenance | ||||
Cooling | Optional | AC air conditioner | DC air conditioner | Heat exchanger |
ventilation |
Cooling Capacity | 1500W | 1500W | 80W/K | 180CFM | |
Input Voltage | 220VAC 50HZ | 48VDC | 48VDC | 48VDC | |
Communication | RS485 | RS485 | RS485 | / | |
Power Distribution Unit(customized) |
B Grade lightning protection,40KA AC Input: 1*63A/2p ;AC Output:2*16A/1P DC Input: 2*32A/1P ;DC Output: 4*16A/1P |
||||
Environment Monitoring Unit(optional) |
19 inch installation, 1U high, 48VDC input voltage, communication port: SNMP 9-way passive switching value input, 6-way active switching value input, 6-way relay output. |
||||
Others | 48VDC LED lamp for illumination,LED switch | ||||
Environment | Working Temperature | -40℃ ~+55℃ (+Solar Radiation) | |||
Storage Temperature | -40℃~+70℃ | ||||
Working Humidity | 5%~95%(No condensation) | ||||
Working Altitude | 0~4000 meters |
3.Cabinet Diagram:
(1) Applicable environment conditions:
Operating temperature: -40°C ~ + 75°C
Storage temperature: -50°C ~ + 70°C
Transport temperature: -50°C ~ + 70°C
Relative humidity (RH): 5%~99%
Air pressure: 62kPa ~ 101kPa (similar to 0m ~ 5000m altitude)
(2) Material: good quality galvanized steel
(3) Surface treatment: powder-coat paint, outdoor polyester light gray RAL 7035 coating
(4) Ingress protection: IP55
(5) Flame retardance: comply with GB5169.7 test A
Service Light
DC air conditioner
Power distribution unit
Envirenmental monitoring unit
Air conditioner drawing:
7. Packaging -Wooden case packaging
