Product Details:
Payment & Shipping Terms:
|
| Cabinet External Size: | H1200mm×W600mm×D600mm | Protection Level: | IP55 |
|---|---|---|---|
| Modle: | ET111122606012020 | 19 Inch Rack: | 20U |
| Cooling System: | Air Conditioner Or Fans,Heat Exchanger,500W 1000W 1500W 2000W Compressed Air Conditioner,Door Installed Heat Exchanger / AC / TEC | Color: | RAL7035 Grey |
| Door: | One Front Door | Integrated Accessories: | PDU, EMS |
| Material: | Galvanized Steel, Single Wall With Insulation | Cabinet Lock: | Anti-theft Three Point Lock(support Padlock) |
| Surface Treatment: | Outdoor Anticorrosion Powder Coating | Type: | Distribution Box,Network Cabinet,Control Box,Telecom Outdoor Cabinet,Outdoor Cabinet For BTS |
| Application: | Telecommunication,base Station,Electronic Ect,Outdoor Electronic Equipment,FTTX Network/Telecom | Form Of Sale: | OEM/ODM |
| High Light: | 20U Outdoor Network Cabinet,front door Outdoor Network Cabinet,Weatherproof 19 Inch Rack Cabinet |
||

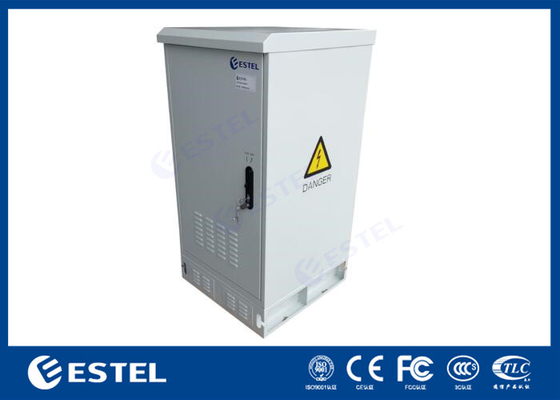

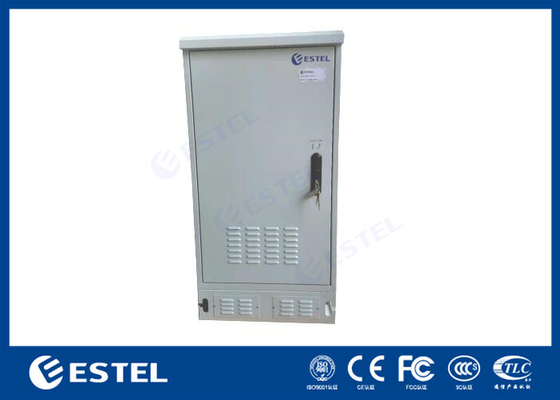

Network Cabinet Outdoor 19 Inch Rack Cabinet Network Cabinet 20U Weatherproof Enclosures
1.Basic infomation
Model No:ET111122606012020
Protection Level:IP55 ,Waterproof,dust proof.
External dimension:H1200mm×W600mm×D600mm (can be customized)
Internal Dimension:19 inch rail, 20U
Material:Galvanized steel, 1.2mm thickness, single wall.
Insulation:PEF (optional)
Coating:Polyester powder coating
Color:RAL7035(can be customized)
Lock:Anti-theft three-point locking system,surpporting padlock
Hinge:Inner hinge
Installation Options:Floor mounted
Cable Routing: Cable in and out from the bottom of cabinet
Maintenance:One front door, front maintenance
2.Product Description
Estel Outdoor Telecommunication Cabinet with Air Conditioner is mainly used for wireless communication base station, including the new generation of 4G system, communication network/network integrated services, access/transmission switching station, emergency communication/transmission. It is designed for a variety of applications and can be tailored to fit your specific needs.This cost effective solution has a unique cube design that give flexibility to easily have various heights of cabinets.
3.Accessory List
Accessory List(options)
| Accessory List(options) | ||
| No. | Item | Specifications |
| 1 | Fan | AC110/220V or DC 48V |
| 2 | Power Supply | AC INPUT: 32A/1P MCB or 63A/2P MCB DC OUTPUT: 16A/1P MCB |
| 3 | Environment Monitoring Unit | 48VDC Communication port: RS485, TCP/IP, SNMP optional |
| 4 | Door Sensor | Monitor door open status inside cabinet and provide real time alarm. |
| 5 | Water Sensor | Monitor water status inside cabinet and provide real time alarm. |
| 6 | Tilt & Shock Sensor | Monitor shock status inside cabinet and provide real time alarm. |
| 7 | Temperature & Humidity Sensor | Monitor temperature and humidity inside cabinet and provide real time alarm. |
| 8 | Smoke Sensor | Monitor smoke status inside cabinet and provide real time alarm. |
Cooling System(Optional)
| Cooling System(Optional) | ||
| No. | Item | Specifications |
| 1 | Air Conditioner | AC220V/DC48V, Cooling Capacity 300w-5000w |
| 2 | Heat Exchanger | AC220V/DC48V, Heat transfer 80w/k-200w/k |
| 3 | Thermoelectric Cooler (TEC) | DC48V, Cooling capacity 200w, 300w |
| 4 | Fan | AC110/220V or DC 48V |

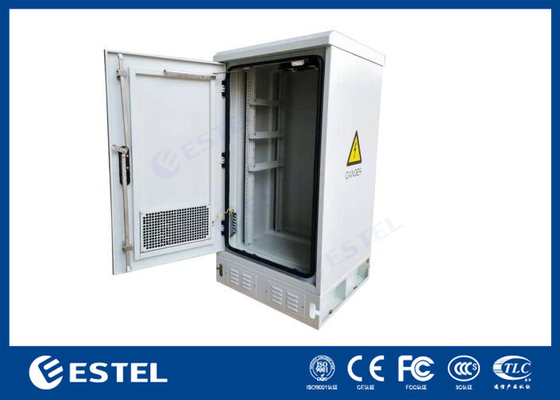

4.Diagram and pictures
5.Application
6.Packing
Cabinet package use free fumigation plywood which is suitable for export. This package is anti moisture, anti impact and srong to ensure safe transportation.
7.Payment & Shipping Terms
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Payment Terms: | L/C,D/A,T/T, Western Union, Paypal, etc |
| Supply Ability: | 5,000 sets per month |
| Delivery Time: | 10-15 working days |
| Packaging Details: | wooden case |
| Shipping: | by sea, by air, by courier, by land, by train, etc. |
