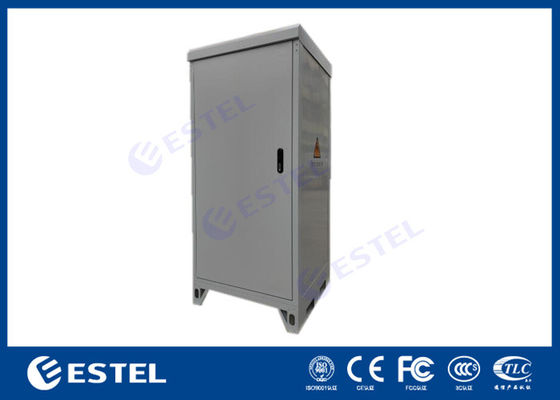

Double Wall Galvanized Steel Outdoor Power Cabinet Rectifier System Enclosure

Double Wall Galvanized Steel Outdoor Power Cabinet Rectifier System Enclosure
Double Wall Galvanized Steel Outdoor Power Cabinet Rectifier System Enclosure Double Wall Galvanized Steel Outdoor Power Cabinet Rectifier System Enclosure Double Wall Galvanized Steel Outdoor Power Cabinet Rectifier System Enclosure Double Wall Galvanized Steel Outdoor Power Cabinet Rectifier System Enclosure

Large Image :  Double Wall Galvanized Steel Outdoor Power Cabinet Rectifier System Enclosure

Product Details:
Place of Origin: China
Brand Name: ESTEL
Certification: ISO9001
Model Number: ET9090210-UP-2D-HEX
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Packaging Details: Wooden Case with Pallet
Delivery Time: 15 to 20 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 1800PCS per month
Detailed Product Description
Material: Sandwich Structure Panel, Galvanized Steel, Double Wall With Heat Insualtion Door Open: One Front Door And One Rear Door
IP Level: IP55 Operating Temperature: - 40℃~+75℃
Cooling Method: Heat Exchanger And Fan External Dimension: W×D×H 900×900×2100mm
Equipment Install Method: Standard 19"rack And 2 Layer Battery Shelf Cable Inlet: On The Bottom Front And Back
High Light:

Galvanized Steel Outdoor Power Cabinet

,

Double Wall Outdoor Power Cabinet

,

IP55 Outdoor Power Enclosure



Double Wall Galvanized Steel Outdoor Power Cabinet Rectifier System Enclosure IP55 2100mm Height



1. Introduction of outdoor telecom cabinet


Outdoor telecom cabinet ET9090210-UP-2D-HEX includes 23U 19 inch rack and two layer battery shelf which are used for installing 19” equipment & power system and battery. One front door and one rear door design is easy for equipment install and maintenance. The material adopts Sandwich structure panel, and use heat exchanger for cooling.


2. Technical spec of outdoor power cabinet



Model ET9090210-UP-2D-HEX
External Size W×D×H 900×900×2100mm
Equipment Install Method Standard 23U 19” rack and 2 layer battery shelf (can hold battery size L×W×H 546×125×317mm, 8 pcs, 2 string)
Door Totally 2 doors: 1 front door and 1 rear door
Lock Anti-theft three point lock, specially for outdoor cabinet(support padlock)
Material Sandwich structure panel, double wall, galvanized steel, with heat insulation
Cabinet Installation method Floor mounted, including floor mount accessories.



Cable Inlet

On the bottom front and back
Lifting Ear 4 ears on the cabinet base
Earthing Grounding copper bar
Working Temperature -40°C~+75°C
Ingress Protection IP55
Relative Humidity 5% ~ 100%
Air Pressure 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
Solar Radiation Intensity 1120 ×(1±5%)W/m2

Cooling

(1) Heat Exchanger Cooling Capacity: 150W/K; Power Supply: 220VAC, 60Hz

(2) Fan Two AC220V 60Hz fans,connected to heat exchanger

Both heat exchanger and fan on the front door


Environment Monitoring System

1* environment monitoring unit, 1U,SNMP communication; 1* smoke sensor;

1* water sensor;

1* temperature&humidity sensor;

1* tilt &shock combination sensor;

1* door sensor

Power Supply: 220VAC, 60Hz


Busbar 1 PC

LED Lamp Power Supply: 220VAC, 60Hz

Socket 8 -bit universal socket, 220V 16A

3. ​Feature

  • IP55 ingress protection, waterproof, dustproof.
  • Front and rear doors use standard three-point anti-theft lock. Three point means an upper, middle and lower three-point locking structure. Enhance the cabinet safety.
  • Sandwich structure panel: galvanized steel, double wall with heat insulation.
  • Standard 19 inch mounting posts.comply with IEC60297.
  • Both heat exchanger and fan include outer cover, effectively isolate the external harsh environment.
  • Cable entry is via the base as standard with side or roof entry available upon request.



4. Advantage



  • Multi-stage cleaning and pre-treatment prior to the application of a 120micron powder coating
  • The cabinet structure have earthquake resistance function
  • Outdoor cabinet is compact and durable, space layout is reasonable, greatly reducing the construction cost
  • Waterproof, anti-corrosion, anti sand and anti ultraviolet, ensure cabinet can work longer in a harsh outdoor environment
  • Simpler: compared with on-site construction, deep integration of outdoor cabinet of communication base station and factory pre verification test are more standardized, safe and reliable; dynamic environment monitoring system monitors infrastructure in an all-round way, alarms abnormal conditions in time, and is safe.
  • More time saving: the outdoor cabinet of communication base station is of modular design, which can be installed and delivered in one day.



​5. Applications



Our cabinet is widely used in outdoor communication industry. The cabinet can be equipped with various communication equipment, rectifier power supply system, monitoring unit, battery, optical fiber, etc. Suitable for use in streets, building tops, mountain tops, urban, rural, residential areas and other areas.



6​. Size drawing



Double Wall Galvanized Steel Outdoor Power Cabinet Rectifier System Enclosure 0



7. Cabinet details display



Double Wall Galvanized Steel Outdoor Power Cabinet Rectifier System Enclosure 1



8. Package



Cabinet package use free fumigation plywood which suitable for export. This package is anti moisture, anti impact and srong to ensure safe transportation.



Double Wall Galvanized Steel Outdoor Power Cabinet Rectifier System Enclosure 2
