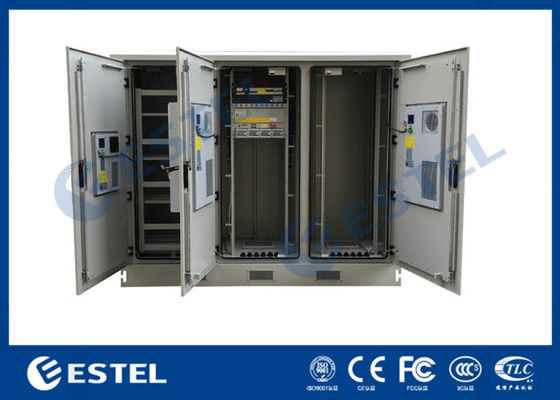

Wireless 3 Compartments Grey RAL 7035 Outdoor Equipment Cabinet

Wireless 3 Compartments Grey RAL 7035 Outdoor Equipment Cabinet
Wireless 3 Compartments Grey RAL 7035 Outdoor Equipment Cabinet Wireless 3 Compartments Grey RAL 7035 Outdoor Equipment Cabinet

Large Image :  Wireless 3 Compartments Grey RAL 7035 Outdoor Equipment Cabinet

Product Details:
Place of Origin: Shenzhen, China (Mainland)
Brand Name: ESTEL
Certification: ISO9001, CE, 3C, FCC, TLC, IP55
Model Number: 336240904050003
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden case with pallets
Delivery Time: 15-20 working days
Payment Terms: T/T, L/C,D/A, Western Union, Paypal, etc
Supply Ability: 8,000 sets per month
Detailed Product Description
Material: Galvanized, Double Wall With Insulation Door Type: With Three Front Doors
External Dimension: W×D×H: 2400mm×900mm×2400mm Ingress Protection: IP55
Layout: 3 Bays Package: Wooden Case With Pallets
High Light:

telecom equipment cabinet

,

outdoor telecom enclosure

,

Grey Outdoor Equipment Cabinet



Wireless 3 Compartments 3 Air Conditioners Cooling Outdoor Base Station Floor Mounted Outdoor Cabinet



1. Cabinet Instructions



The 3 compartments cabinet material is high quality galvanized steel with exquisite workmanship and precise size. The main frame of the cabinet is made by welding,ensuring the whole cabinet is strong and durable. The internal structure and all kinds of accessories are assembled in the way of assembling, and the application is flexible. The cabinet body and its internal accessories are all pretreated by acid washing and phosphating, and then the special molding powder is used for electrostatic spraying, so as to prevent corrosion and rust.



2. Cabinet Parameters



Configuration Item Technical Parameter
Cabinet Body Model 336240904050003
Size External Size:W×D×H: 2400mm×900mm×2400mm
Component The whole cabinet is composed of three parts: the top cover, the cabinet body and the base. The installation method is floor mount
Material Double wall galvanized steel
Structure
  • 3 front doors, hidden zinc alloy hinge
  • Outdoor special steel lock, lock cylinder assembled with protective cover, lock body assembled with anti-theft three-point lock (support padlock)
  • Door stopper / wind lock is installed on the inside of the cabinet door
  • Equipped with cable manager
  • Grooved door with seal rubber strip, attached to the inner side of the door, waterproof and dustproof
  • 3 compartments: each compartment includes 19" rack
  • Cable inlets at the bottom of cabinet
  • Grounding Protection: copper bar
Surface Treatment Deoil, acid pickling, phosphating, electrostatic spraying, high temperature solidification, outdoor anti-corrosion powder coating
Color Grey RAL 7035
Ingress Protection IP55
Working Temperature -40°C~+85°C



3. Cabinet Features



(1) Galvanized Steel, double wall with insulation.

(2) The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding.

(3)There are cable inlet individually for power cable, signal cable and optical cable.

(4) All the cables used in the cabinet are made from flame retardant materials.

(5) Protection grade :IP55.

(6) Security design: Embedded doors, embedded hinges, 3-point security locks.



4. Cabinet Instructions



  • LED lamp, smoke sensor and door sensor are installed at the top of the enclosure.

Wireless 3 Compartments Grey RAL 7035 Outdoor Equipment Cabinet 0

  • Environment Monitoring Unit and PDU are installed on 19” rack.
  • There are 3 air conditioners installed on the 3 front doors
  • Feeder cable and other external cables all use bottom wiring method.

Wireless 3 Compartments Grey RAL 7035 Outdoor Equipment Cabinet 1



5. Cabinet Package



Wooden case with pallets.



Wireless 3 Compartments Grey RAL 7035 Outdoor Equipment Cabinet 2
