| External Size: | W× D×H 2200 ×900 ×2400mm | Cabinet Lock: | Anti-theft Three Point Lock(support Padlock) |
|---|---|---|---|
| Cable Inlets: | From Cabinet Bottom | Mounting Type: | Floor Mount |
| Cooling System: | Air Conditioners | Protection Level: | IP55 |
| High Light: | telecom equipment cabinet,outdoor telecom enclosure,2 Compartments Telecom Cabinet |
||

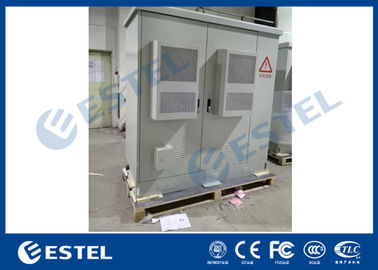

2 Compartments Rack Mounted Outdoor Base Station / IP55 Outdoor Equipment Enclosure
1. Cabinet Instructions
This series cabinet is 2400mm High and 2200mm Wide and 900mm Deep. For those who need more than just standard cabinet, this series can also offer a truly the security of customized solution with lots of available options, providing a climate-controlled environment for any electronic equipment, electrical load panels and cable entry solutions. It provides a secure,climate controlled environment for any electronic equipment.
2. Cabinet Parameters
| Item | Type | Technical Parameter |
| Structure | Dimension |
External Dimension: H×W×D 2200×900×2400mm
|
| Layout | 2 compartments | |
| Equipment Installation Method | 19” rack | |
| Door | With two front doors, and anti-theft three point lock for outdoor cabinet (support padlock) | |
| Material | Galvanized steel ; 1.5mm thick outer plate, 0.8mm thick inner plate | |
| Heat Insulation | There are heat insulation between inner wall and outer wall. The insulation material is 20mm PEF. | |
| Structure | Assembled | |
| Ingress Protection | IP55 | |
| Temperature Control | Cooling | AC220V air conditioners |
| Lightning Proof | Grade B lightning proof | Nominal: 60KA, Max.: 100KA |
| Lighting | LED lamp | 48V LED lamps (immovable), with protective circuit breaker |
| Temperature | Temperature | Working Temperature: -40°C ~ +55°C |
| Storage Temperature: -50°C ~ + 70°C | ||
| Transport Temperature: -50°C ~ +70°C | ||
| Humidity | Relative Humidity | 5% ~ 100% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1120 ×(1±5%)W/m2 |
3.Cabinet Cooling System
There are 2 air conditioners installed on the 2 front doors
4. Oil Socket
There is one oil socket installed on the outside of one front door.
5. Factory Introduction
Factory Size: 3000 Square Meters
No. of Main Production Lines: 5
Contract Manufacturing: OEM Service Offered, Design Service Offered, Buyer Label Offered
Production Experience: 13 Year
6. Our Delivery Agent
The goods can be shipped by sea, by air, by courier, by land, by train, etc.
Besides the following delivery agent, we can also look for the delivery agent with the best price in china if you need us to do for you.
