2 Compartments Outdoor Telecom Cabinet Galvanized Steel 4 Doors CE Certificated

2 Compartments Outdoor Telecom Cabinet Galvanized Steel 4 Doors CE Certificated
2 Compartments Outdoor Telecom Cabinet Galvanized Steel 4 Doors CE Certificated

Large Image :  2 Compartments Outdoor Telecom Cabinet Galvanized Steel 4 Doors CE Certificated

Product Details:
Place of Origin: Shenzhen, China (Mainland)
Brand Name: ESTEL
Certification: ISO9001, CE, 3C, FCC, TLC, IP55
Model Number: ET160100200-EQ
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden case with pallets
Delivery Time: 15-20 working days
Payment Terms: T/T, L/C,D/A, Western Union, Paypal, etc
Supply Ability: 8,000 sets per month
Detailed Product Description
Dimension: H×W×D 2000×1600×1000mm Material: Galvanized Steel
Temperature Control: DC48V Air Conditioner And DC48V Fans For Left Compartment And Right Compartment. Door Type: With Two Front Doors And Two Rear Doors
Ingress Protection: IP55 Certificates: CE
High Light:

telecom equipment cabinet

,

outdoor telecom enclosure

,

2 Compartments Outdoor Telecom Cabinet



2 Compartments Air Conditioner Cooling Outdoor Telecom Cabnet Galvanized Steel 4 Doors

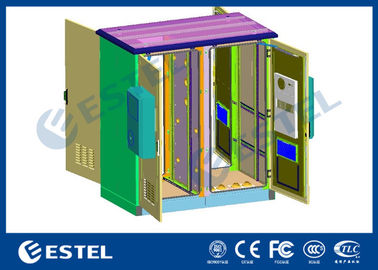

1. Cabinet Description



The cabinet includes two compartments, with separated left compartment and right compartment, and there is middle division plate between the two compartments. Both left compartment and right compartment incude 19” installation rack. The cabinet cooling uses air conditioner and fans, to ensure the equipments operate normally at stable temperature range, so as to make the service life of the equipments much longer and their performance more stable.



2.Cabinet Application



The outdoor telecom cabinet is mainly used in wireless communication base station, such as 4G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.



3. Cabinet Parameters



Item Type Technical Parameter
Structure Dimension H×W×D 2000×1600×1000mm
Layout Two compartments (left compartment and right compartment, with middle division plate).
Equipment Installation Method 19” rack, 40U for each compartment. Both front rack and rear rack are adjustable.
Door With two front doors and two rear doors, and anti-theft three point lock for outdoor cabinet (support padlock)
Material Galvanized steel; double wall
Heat Insulation There are heat insulation between inner wall and outer wall. The insulation material is 20mm PEF.
Structure Assembled
Ingress Protection IP55
Temperature Control Cooling DC48V air conditioner and DC48V fans for left compartment and right compartment.
Lighting LED lamp 48V LED lamps; The lamps will be on when the cabinet door is open, and will be off when the cabinet door is closed.
Temperature Temperature Working Temperature: -40°C ~ +55°C
Storage Temperature: -50°C ~ + 70°C
Transport Temperature: -50°C ~ +70°C
Humidity Relative Humidity 5% ~ 100%
Pressure Air Pressure 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
Radiation Intensity Solar Radiation Intensity 1120 ×(1±5%)W/m2



4. Cabinet Doors



The cabinet has two front doors and two rear doors, with anti-theft three point lock (support padlock).



5.Cabinet Cooling System



DC48V air conditioner and DC48V fans for left compartment and right compartment.









7. Cabinet Shipment



2 Compartments Outdoor Telecom Cabinet Galvanized Steel 4 Doors CE Certificated 0
