3 Bay Outdoor Telecom Enclosure Air Conditioner Cooling System With Battery Layers

China 3 Bay Outdoor Telecom Enclosure Air Conditioner Cooling System With Battery Layers supplier
3 Bay Outdoor Telecom Enclosure Air Conditioner Cooling System With Battery Layers supplier 3 Bay Outdoor Telecom Enclosure Air Conditioner Cooling System With Battery Layers supplier

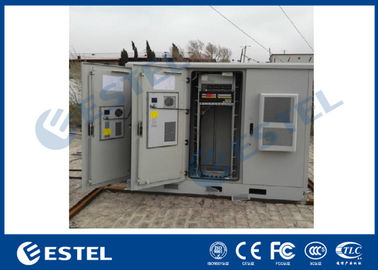

Large Image :  3 Bay Outdoor Telecom Enclosure Air Conditioner Cooling System With Battery Layers

Product Details:

Place of Origin: Shenzhen, China (Mainland)
Brand Name: ESTEL
Certification: ISO9001, CE, 3C, FCC, TLC, IP55
Model Number: 336240824050005

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden case
Delivery Time: 15-20 working days
Payment Terms: T/T, L/C,D/A, Western Union, Paypal, etc
Supply Ability: 5,000 sets per month
Contact Now
Detailed Product Description
External Size: W*D*H 2400*800*2400mm Material: Galvanized Steel
Cabinet Lock: Anti-theft Three Point Lock(support Padlock) Cable Inlets: From Cabinet Bottom
Mounting Type: Floor Mount Cooling System: Air Conditioners
Certificates: CE Protection Level: IP55


3 Bay Air Conditioner Cooling System Outdoor Base Station With Battery Layers And Rack Rails

1.Cabinet Instructions


  • Triple Bay Enclosure is 2400mm High and 2400mm Wide and 800mm Deep. It comes with 2 Sets of Standard 19″  Racking Rails and 4 battery layers.
  • Standard Racking Hub that will allow you side by side.This triple bay enclosures are the ultimate choice for outdoor racking requirements.
  • For those who need more than just standard enclosure, this series can also offer a truly the security of customized solution with lots of available options.
  • It provides a climate-controlled environment for any electronic equipment, electrical load panels and cable entry solutions.
  • It provides a secure,climate controlled environment for any electronic equipment.


2.Cabinet Parameters


ItemParameters
External dimentionsW*D*H 2400*800*2400mm
ColorGreen color
MaterialGalvanized steel
Surface processZinc Die Powd er-coated
Door typeThree front doors
Door lockAnti-theft three point lock
Cable InletsIndividual cable entry holes from bottom of the cabinet
IP protectionIP55 protection level
Mounting racks2 sets of adjustable 19″ racking rails,4 battery layers
Cooling systemair conditione rs
AccessariesThe door sensor, water sensor, smoke sensor, temperature and humidity sensor optional
Flame retardantcomply with GB5169.7 test A
CE certificatesSupport
Mounting typeFloor mounting type
PackageWooden cas



3.Cabinet Advantage



1) The construction cycle is short, the area occupies less, the scope of application is more extensive, which is conducive to reducing the construction cost.

2) High integration and compact construction are ideal for installation and post-migration.

3) Each individual module is designed with an independent environmental monitoring and control system, which uses more reliable and intelligent, is at least 30% more energy efficient than conventional base stations, and significantly reduces air pollution emissions.

4) Independently equipped with a standard 19-inch power environment monitoring module, remote real-time monitoring and monitoring and monitoring intervention sits on equipment in the base station, and remote maintenance and detection capabilities can be designed to significantly reduce late-stage operational maintenance costs.

4.Cabinet Application

Provide a secure,climate controlled environment for any electrionic equipment.

  • Wireless/Broadband
  • Telecommunications
  • Base station
  • Trailer-based communications
  • Fiber Optics
  • Military
  • Flexible and Scalable


5.Cabient Detail Instructions

5.1 Cable Entry Holes

There are entrance holes individually for feeder cable and other external cables.

5.2 ​Connection And Fastening



  • Use anti-loose threaded connection as structure and bearer connection. Anchor bolt for fixing cabinet use hot dip galvanized bolts.
  • Door hinges use inner hinge mode.

3 Bay Outdoor Telecom Enclosure Air Conditioner Cooling System With Battery Layers



5.3 Cabinet Door



The cabinet door uses embedded structure. The door opening angle is larger than 110°and the door limit device can limit the opening angle. The lock is theftproof three point lock, supporting padlock. Each cabinet door include open door sensor, working together with the environment monitoring unit.


6. Cooling System


This three bay cabinets has 3 units air conditoners installed on the front doors.220VAC Air Conditioner

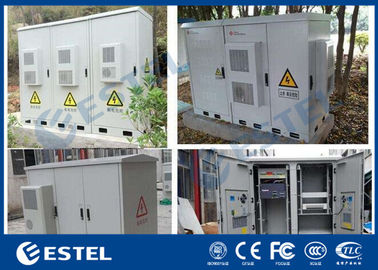

7. Product Application

3 Bay Outdoor Telecom Enclosure Air Conditioner Cooling System With Battery Layers


8.Our Delivery Agent



The goods can be shipped by sea, by air, by courier, by land, by train, etc.

Besides the following delivery agent, we can also look for the delivery agent with the best price in china if you need us to do for you.
