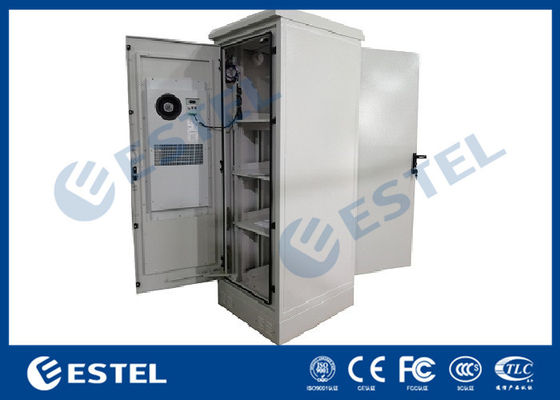

Front Rear Access Outdoor Electronics Cabinet Air Conditioner Cooling System

Front Rear Access Outdoor Electronics Cabinet Air Conditioner Cooling System
Front Rear Access Outdoor Electronics Cabinet Air Conditioner Cooling System

Large Image :  Front Rear Access Outdoor Electronics Cabinet Air Conditioner Cooling System

Product Details:
Place of Origin: Shenzhen, China (Mainland)
Brand Name: ESTEL
Certification: ISO9001, CE, 3C, FCC, TLC, IP55
Model Number: 332080921050004
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden case
Delivery Time: 15-20 working days
Payment Terms: T/T, L/C,D/A, Western Union, Paypal, etc
Supply Ability: 5,000 sets per month
Detailed Product Description
External Size: W*D*H 800*900*2100mm Material: Galvanized Steel, Double Wall With Insulation
Cabinet Lock: Anti-theft Three Point Lock(support Padlock) Cable Inlets: From Cabinet Bottom
Mounting Type: Floor Mount Cooling System: Air Conditioner
High Light:

telecom equipment cabinet

,

outdoor telecom enclosure

,

Front Rear Access Telecom Cabinet



Rack Mount Double Wall IP55 Outdoor Telecom Cabinet With Front Rear Access



1. Cabinet Features



● IP55 rating.

The outdoor telecom cabinet is vandal proof, withstand dust and sand storms.

● Multiple cooling options: fan, air conditioner, heat exchanger, etc.

● Single wall with energy efficient insulation

● Anti-theft four point lock mechanism both on front door and back door

● 19” rail and one battery shelf

● With one front door and one rear door, convenient for maintenance and access

● Powder coated finish

● Cable entry from underneath



2. Cabinet Specifications



External Size W*D*H 800*900*2100mm
Internal Size W*D*H 720*780*2050mm
Material Galvanized steel,double wall with insulation
Cabinet Layout One compartment
Protection Level IP55
Cable Entry From cabinet bottom
Illumination DC48V LED lamp
Heat Insulation PEF
Grounding Protection Copper bar
Color Grey (support custom made)
Cooling System AC220V Air Conditioner,1000W cooling capacity.
Coating Anti-corrosion outdoor powder coating
Accessories Options PDU, Environment monitoring system,Battery.
Alarm sensors The door sensor, water sensor, smoke sensor, temperature and humidity sensor, vibration sensor
Flame retardant Comply with GB5169.7 test A
Door type

With one front door and one back door, and anti-theft three point lock for outdoor cabinet (support padlock).

Cabinet Lock Anti-theft three point lock(support padlock)
Certificates CE
Package Wooden case with pallets
Mounting type Wall mount



3. Product Applications



  • Trackside and roadside

  • Internet service providers

  • Edge computing & IoT hubs

  • Passive and active optical networks

  • Mobile & Radio, 3G 4G 5G, Tetra, Microwave

  • Urban and rural fibre deployment

  • New build home developments

  • Environmental monitoring

  • CCTV and security systems



4. Connection And Fastening



  • Use anti-loose threaded connection as structure and bearer connection. Anchor bolt for fixing cabinet use hot dip galvanized bolts.
  • Door hinges use inner hinge mode.



5. Cooling System



 Air Conditioner: installed on the front door.



Front Rear Access Outdoor Electronics Cabinet Air Conditioner Cooling System 0



6. Internal Pictures



Front Rear Access Outdoor Electronics Cabinet Air Conditioner Cooling System 1



7. Production Pictures



Front Rear Access Outdoor Electronics Cabinet Air Conditioner Cooling System 2
