Waterproof Sinlgle Wall Outdoor Power Battery Cabinet / IP55 Outdoor Telecom Cabinet

China Waterproof Sinlgle Wall Outdoor Power Battery Cabinet / IP55 Outdoor Telecom Cabinet supplier
Waterproof Sinlgle Wall Outdoor Power Battery Cabinet / IP55 Outdoor Telecom Cabinet supplier Waterproof Sinlgle Wall Outdoor Power Battery Cabinet / IP55 Outdoor Telecom Cabinet supplier Waterproof Sinlgle Wall Outdoor Power Battery Cabinet / IP55 Outdoor Telecom Cabinet supplier Waterproof Sinlgle Wall Outdoor Power Battery Cabinet / IP55 Outdoor Telecom Cabinet supplier Waterproof Sinlgle Wall Outdoor Power Battery Cabinet / IP55 Outdoor Telecom Cabinet supplier

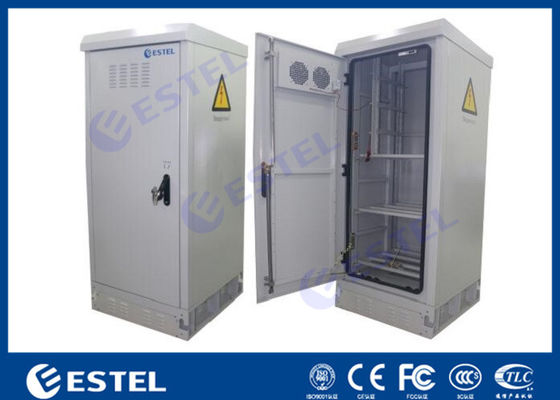

Large Image :  Waterproof Sinlgle Wall Outdoor Power Battery Cabinet / IP55 Outdoor Telecom Cabinet

Product Details:

Place of Origin: Shenzhen, China (Mainland)
Brand Name: ESTEL
Certification: ISO9001, CE, 3C, FCC, TLC, IP55
Model Number: ET7575175-UP-S

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiation
Packaging Details: wooden case
Delivery Time: 15-20 working days
Payment Terms: T/T, L/C, DA, DP, etc
Supply Ability: 7,000 sets per month
Contact Now
Detailed Product Description
Applicaiton: Outdoor Telecom Base Station Etc Material: Galvanized Steel, Single Wall, 1.5mm Thickness
Coating: Anti-corrosion Outdoor Powder Coating Illumination: DC48V LED Lamp
Cabinet Layout: One Compartment For Equipment And Battery Internal Size: W×D×H 750×750×1750mm
Working Temperature: -40°C ~ +55°C Relative Humidity: 5% ~ 100%

Waterproof Sinlgle Wall Outdoor Power Battery Cabinet / IP55 Outdoor Telecom Cabinet





1. Applications



The ET7575175-UP-S Outdoor Telecom Cabinet is mainly used in wireless communication base station:

(1) Access/transmission switching station

(2) Emergency communication/transmission

(3) 4G/5G system

(4) Communication/network integrated service

(5) The cabinet is suitable for outdoor environment, such as road side, park, building roof, mountain area, flat ground, etc. The cabinet can be installed with base station equipments, power supply equipments, batteries, temperature control equipments, transmission equipments and other equipments, or the cabinet can reserve installation space and heat exchange capacity for the above equipments, providing reliable mechanical and environmental protection for normal operation of the internal equipments.



2. Advantages



(1) High integrated

High compatibility, high integration

Supporting multiple equipments, good appearance

(2) Standard compartment temperature control

Multiple temperature control modes optional

Energy saving and high efficiency

(3) Flexible structure

Compartment type design

Flexible assembly

Two compartments / multiple compartments

(4) Fast deployed

Can be assembled, easy for transportation

Modular assembly, short installation time

Suitable for road side station and building top station. After being fixed on the ground, the cabinet will start to work.

(5) Theft - proof

Inside installation, inside fixing, no outer screws

Anti-theft three point lock

Inside door hinges, multiple protection

Embedded cabinet door, theft proof



3. Specifications



(1) Technical Parameters



Item Type Technical Parameter
Structure Dimension

External Dimension: W×D×H 750×750×1750mm

Internal Dimension: W×D×H 650×650×1450mm

Layout One compartment,the upper part for installing 19” equipment, the lower part for installing battery
Equipment Installation Method 19” rack, battery tray
Door With one front door, and anti-theft three point lock for outdoor cabinet (support padlock)
Material Galvanized steel, single wall, 1.5mm thickness
Structure Assembled
Ingress Protection IP55
Temperature Control Cooling Fan
Lighting LED lamp 48V LED lamps (immovable), with protective circuit breaker
Temperature Temperature Working Temperature: -40°C ~ +55°C
    Storage Temperature: -50°C ~ + 70°C
    Transport Temperature: -50°C ~ +70°C
Humidity Relative Humidity 5% ~ 100%
Pressure Air Pressure 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
Radiation Intensity Solar Radiation Intensity 1120 ×(1±5%)W/m2





(2) Accessories List



No. Item Quantity Unit Specs
1 Outdoor Telecom Cabinet 1 Set

(1) External Dimension: W×D×H 750×750×1750mm Internal Dimension: W×D×H 650×650×1450mm

(2)One compartment,the upper part for installing 19” equipment, the lower part for installing battery

(3)With one front door, and anti-theft three point lock for outdoor cabinet (support padlock)

(4)Galvanized steel, single wall, 1.5mm thickness

(5) IP grade: IP55

2 Fan 2 Set DC48V, including temperature controller
3 LED Lamp Switch 1 PC For controlling LED lamp on/off
4 LED Lamp 1 PC DC48V
5 Package 1 Set Wooden Case




Cabinet Dimension Diagram



Waterproof Sinlgle Wall Outdoor Power Battery Cabinet / IP55 Outdoor Telecom Cabinet



4. Features



(1) The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.

(2) Cabinet cooling: fans. MTBF≥50000h

(3) The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There are entrance holes individually for power cable, signal cable and optical cable.

(4) All the cables, sealing and heat insulation used in the cabinet are made from flame retardant materials.

(5) The cabinet includes 19” standard installation rack and battery shelf.

  • Surface treatment: degreasing, derusting, rustproof phosphating (or galvanizing), powder coated.
  • Cabinet load bearing: ≥600kg
  • Flame retardance: comply with GB5169.7 test A
  • Insulation resistance: the insulation resistance between grounding devices and cabinet body parts is not lower than 2×104M/500V(DC).

(10)Withstand voltage: the withstand voltage between grounding devices and cabinet body parts is not lower than 3000V(DC)/1min.

(11) Mechanical strength: each surface can bear upright pressure >980N; after the door is open, its outer end can bear upright pressure >200N.





5. Description

5.1 Cabinet Door and Lock

The cabinet includes one front door. The cabinet door uses embedded structure. The door opening angle is larger than 110°and the door limit device can limit the opening angle. The lock is theftproof three point lock, supporting padlock.

5.1.1 Door lock theft proof design

  • Damage resistance of the theft proof lock meets GA/T 73-1994 “Mechanical Anti-theft Lock” class B requirement, supporting padlock.

Waterproof Sinlgle Wall Outdoor Power Battery Cabinet / IP55 Outdoor Telecom Cabinet





Three point lock





Waterproof Sinlgle Wall Outdoor Power Battery Cabinet / IP55 Outdoor Telecom Cabinet





5.2 Cable Inlet

Feeder cable and other external cables all use bottom wiring method.



Waterproof Sinlgle Wall Outdoor Power Battery Cabinet / IP55 Outdoor Telecom Cabinet



5.3 Grounding Protection

  • The cabinet includes grounding copper bar with anti-corrosion coating. There are enough screws for wiring connection terminals.
  • The metal part of the cabinet should be interconnected and be connected with grounding bar. Connection resistance between any two points is lower than 0.1Ω.
  • Protective earthing of other equipments inside the cabinet should be connected to the grounding bar.

Waterproof Sinlgle Wall Outdoor Power Battery Cabinet / IP55 Outdoor Telecom Cabinet



5.4 Connection and Fastening

(1) Use anti-loose threaded connection as structure and bearer connection. Anchor bolt for fixing cabinet use hot dip galvanized bolts.

(2) Door hinges use inner hinge mode.





6. Packing--Wooden Case



Waterproof Sinlgle Wall Outdoor Power Battery Cabinet / IP55 Outdoor Telecom Cabinet





Waterproof Sinlgle Wall Outdoor Power Battery Cabinet / IP55 Outdoor Telecom Cabinet
