|Install Method:||Pole Mounted||Inner Structure:||The Upper Part Is Equipment Bay, The Lower Part Is Battery Bay|
|Cooling:||Air Conditioner Anf Fan||Material:||Galvanized Steel|
|Steel Structure:||Double Wall With Insulation||External Size:||W×D×H 850x650x1400mm(different Size Are Optional)|
|Lightning Protection:||Grade B, Nominal: 60KA; Max: 100KA|

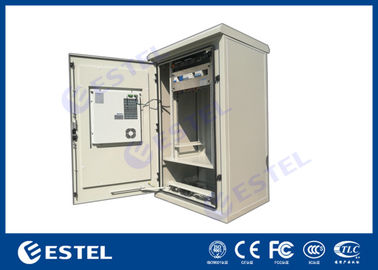

DC Air Conditioner Cooling Pole Mount Power Supply Enclosure With 21U 19 Inch Rack and One Battery Shelf
ESTEL is at the forefront in the development of secure, high dependability and innovative designs of outdoor cabinets & enclosures. Our close collaboration with major communication providers has resulted in products providing security and environmental protection for sensitive electronics.
These cabinets can vary in size, from relatively small street-side cabinets to large walk-in cabins located trackside, on train platforms, green field sites, street-side etc.
The ESTEL outdoor cabinet range provides single or multi-chamber, temperature controlled secure environment for valuable sensitive communications, electronic & electrical equipment, in a cost effective and space saving manner.
Cabinets are sealed up-to IP65 and are tailor made to suit customers’ specific equipment, including copper and fibre management, EMC shielding where applicable with core material life expectancy exceeding 25 years.
Additional essential features protect against the dangers of dust, humidity, rain, moisture and physical attack.
Ultra-quiet radial fans combined with air reservoirs contained in large cabinets produce low noise and high volume air flow providing maximum cooling without the need or expense of air conditioning or refrigeration techniques.
Protection is provided from the suns heat using double wall technology, thermal chamber and high performance insulation to minimise the effects of solar heat gain and the transference of heat/cold. Reducing these threats can eliminate hot spots and condensation decreasing the failure of sensitive communications or other electronic equipment.
HIGH PERFORMANCE COOLING
The pre-engineered advantages are combined with highly efficient & dynamic cooling systems that maintain critical electronic and communications equipment within optimum operational conditions. This maximises uptime and ensures the reliability of equipment and services, reducing the costs associated with the servicing or replacement of prematurely failed components and equipment.
A range of cooling capacities are available, including high performance systems which are rated to cope with very low or very high ambient temperatures. Specially engineered cooling systems for coastal deployments, offer marinised protection against the effects of salt corrosion.
This universal design draws on forty years of global experience in supporting critical infrastructure projects in challenging deployments, environments and extreme conditions.
|1||Outdoor Telecom Cabinet||1||Set||External Dimension: W×D×H 850x650x1400mm|
Cooling capacity: 500W,
Power supply: DC48V,
|3||Fan||4||PC||DC48V, installed on top, temperature adjustable|
|4||Telecom Power System||1||Set||GPE4860G|
Grade B Lightning Proof AC Input: 63A/2P×1; AC Output: 16A/1P×4;
DC Output: 16A/1P×4
|6||LED Sensor||1||PC||Used for controlling LED lamp on /off|
