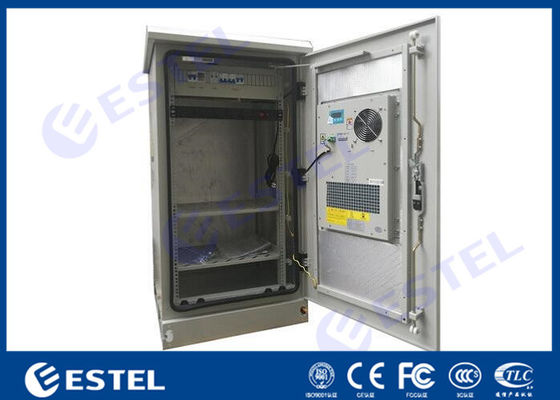

Waterproof 24U Single Wall Insulated Outdoor Telecom Cabinet / Temperature Control Box

Waterproof 24U Single Wall Insulated Outdoor Telecom Cabinet  / Temperature Control Box
Waterproof 24U Single Wall Insulated Outdoor Telecom Cabinet  / Temperature Control Box Waterproof 24U Single Wall Insulated Outdoor Telecom Cabinet  / Temperature Control Box Waterproof 24U Single Wall Insulated Outdoor Telecom Cabinet  / Temperature Control Box Waterproof 24U Single Wall Insulated Outdoor Telecom Cabinet  / Temperature Control Box

Large Image :  Waterproof 24U Single Wall Insulated Outdoor Telecom Cabinet / Temperature Control Box

Product Details:
Place of Origin: China
Brand Name: ESTEL
Certification: ISO9001
Model Number: ET6565130-EQ
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Packaging Details: Wooden Case
Delivery Time: 20 woking days
Payment Terms: T/T, L/C, Western Union, MoneyGram, D/A, D/P
Supply Ability: 5000PCS per month
Detailed Product Description
External Size: WxDxH 650x650x1300mm Equipment Installation: Standard 19" Rack
Protection: IP55 Inner Space: 24U
Coating: Anti Corrosion Powder Coating Cooling: Air Conditioner And Fan
LED Lamp: -48VDC Materail: Galvanized Steel, Single Wall + Heat Insulation
PDU: Optional
High Light:

telecom equipment cabinet

,

outdoor telecom enclosure

,

Insulated Outdoor Telecom Cabinet

24U Temperature Control Outdoor Telecom Cabinet Single Wall With Heat Insulation 19 Inch Equipment Cabinet



1. Application





The ET6565130-EQ Outdoor Cabinet is mainly used in wireless communication base station, such as communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.





2. Features



(1) The cabinet is dustproof, sunproof and rainproof, used in outdoor environment.

(2) Cooling: air conditioner and fan.

(3) The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding.

(4) All the cables used in the cabinet are made from flame retardant materials.





3. Technical Parameters



Item Type Technical Parameter
Structure Dimension External Size H*W*D 1300*650*650mm
Layout One compartment, used for installing 19” equipment
Equipment Installation Method 19” rack
Door With one front door, and anti-theft three point lock for outdoor cabinet (support padlock)
Material

Galvanized steel, single wall + heat insulation: 1.5mm outer steel plate + 20mm inner insulation

(Option: galvanized steel, double wall+heat insulation, 1.5mm outer plate, 0.8mm inner plate, there is 20mm insulation between two plate)

Structure Assembled
Ingress Protection IP55
Temperature Control Cooling Air conditioner and fan
Lighting LED lamp DC48V
Temperature Temperature Working Temperature: -40°C ~ +55°C
    Storage Temperature: -50°C ~ + 70°C
    Transport Temperature: -50°C ~ +70°C
Humidity Relative Humidity 5% ~ 100%
Pressure Air Pressure 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
Radiation Intensity Solar Radiation Intensity 1120 ×(1±5%)W/m2




4. Accessories List



No. Item Quantity Unit Specs
1 Outdoor Telecom Cabinet 1 Set

(1) External Dimension

H×W×D 1300×650×650mm ;

(2) One compartment: including 24U 19” rack.

(3) With one front door, with three point lock for outdoor cabinet.

(4) Material: Galvanized steel; single wall + heat insulati: 1.5mm outer steel plate+ 20mm inner insulation

(Option: galvanized steel; double wall+heat insulation, 1.5mm outer plate, 0.8mm inner plate, there is 20mm insulation between two plate)

2 Air Conditioner 1 Set

Cooling Capacity: 500W;

Power Supply: 220VAC, 50Hz

3 Fan 2 Set DC48V
4 LED Lamp Switch 1 PC For controlling LED lamp on/off
5 LED Lamp 1 PC DC48V
6 Package 1 Set Wooden Case




5.Cabinet Drawing



External Dimension H×W×D 1300×650×650mm(19”, 24U);

Waterproof 24U Single Wall Insulated Outdoor Telecom Cabinet  / Temperature Control Box 0

                                                                             Waterproof 24U Single Wall Insulated Outdoor Telecom Cabinet  / Temperature Control Box 1

                                                                     Waterproof 24U Single Wall Insulated Outdoor Telecom Cabinet  / Temperature Control Box 2





6. Cabinet Layout

Waterproof 24U Single Wall Insulated Outdoor Telecom Cabinet  / Temperature Control Box 3

Waterproof 24U Single Wall Insulated Outdoor Telecom Cabinet  / Temperature Control Box 4

Waterproof 24U Single Wall Insulated Outdoor Telecom Cabinet  / Temperature Control Box 5

                              Waterproof 24U Single Wall Insulated Outdoor Telecom Cabinet  / Temperature Control Box 6
