| Material: | Galvanized Steel,double Wall With Thermal Insulation | Cooling: | AC220V 50Hz Air Conditioner |
|---|---|---|---|
| Protection Level: | IP55 | Proof: | Dustproof, Sunproof And Rainproof |
| Color: | Greyish White RAL428C Or Custom Made | Equipment Installation Method: | 17U 19" Rack And Tray |
| External Size: | 860mm×650mm×650mm(H×W×D) | Internal Size: | 775mm×600mm×600mm(H×W×D) |
| High Light: | outdoor electronics cabinet,pole mount cabinet,Anti Corrosion Pole Mounted Cabinet |
||

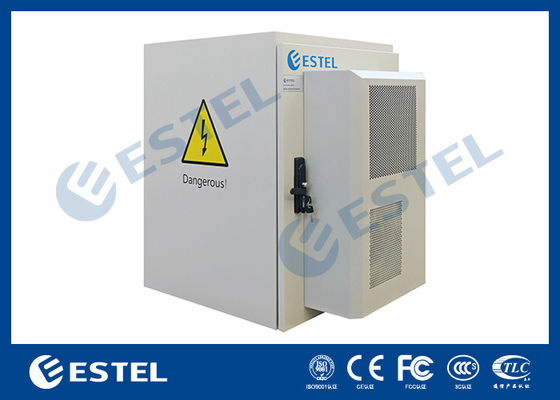

Anti- corrosion Pole Mount Enclosure / Pole Mounted Cabinet With Shaped Hole, Full Protection
● The integrated outdoor telecom cabinet can be directly under the outdoor climate, made of metal or non-metallic material, does not allow the operator to access the cabinet. The cabinet can install base station equipment, power supply, battery, temperature control equipment, transmission equipment and other related equipment, and can provide reliable mechanical and environmental protection for normal operation of the internal equipments.
The cabinet is mainly used for wireless communication base stations, including a new generation of 4G / 5G systems, communications / network integrated services, access / transmission switching station, emergency communications / transmission etc.
●Short construction period, less land occupation, broader application and lower construction cost
● High integration, compact structure, easy installation and migration on later stage
● High-performance cooling solution
● Anti-theft three-point outdoor cabinet lock, excellent keyhole protection device
● Perfect air duct design to avoid cold and hot gas mixed flow effectively
●Full protection: door sensor, smoke sensor, water sensor, temperature & humidity sensor and tilt & shock sensor are optional
● Professional outdoor anti- corrosion powder coating, strong weather resistance
● Independent environmental monitoring system can realize remote real-time monitoring and human intervention on the equipment in the cabinet. And can be designed to achieve remote maintenance and detection capabilities, thus greatly reducing the operation and maintenance costs of the later period
● The cabinet material is a high quality galvanized steel, which is made by the world's leading AMAD CNC equipment, with exquisite workmanship and precise size. The main frame of the cabinet is made by welding, ensuring the whole cabinet is strong and durable. The internal structure and all kinds of accessories are assembled in the way of assembling, and the application is flexible. The cabinet and its internal accessories are all pretreated by acid washing and phosphating, and then the special plastic powder is used for electrostatic spraying, so as to prevent corrosion and rust.
| Configuration | Item | Technical Parameter |
| Cabinet Body | Model | MODIFIED ET656590P |
| Size |
External Size: 860mm×650mm×650mm(H×W×D) Internal Size: 775mm×600mm×600mm(H×W×D) |
|

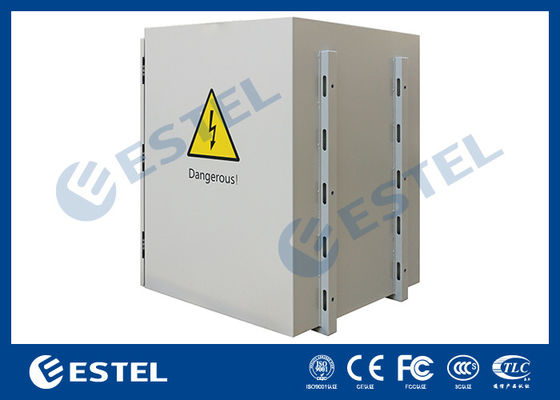

| Component | The whole cabinet is composed of two parts: the cabinet body and pole mount accessory . The installation method is pole mount. | |
| Material |
High quality galvanized steel plate, double wall:
|
|
| Structure |
|
|
| Surface Treatment | Deoil, acid washing, phosphating, electrostatic spraying, high temperature solidification | |
| Color | Greyish white RAL428C or custom made | |
| Ingress Protection | IP55 or custom made | |
| Working Temperature | -40℃～+75℃ | |
| Cooling Method | Compressor Air Conditioner | AC220V 50Hz 1600W |
| Heat Exchanger | / | |
| TEC Air Conditioner | / | |
| Power Supply | Embedded Power Supply / Rectifier System | / |
| UPS Power Supply | / | |
| Power Distribution Unit |
AC DC PDU: Grade B lighting proof; AC input : 63A/2P*1 AC output:16A/1P*4; DC output:16A/1P*4; Height: 4U |
|
| Monitoring | Monitoring Unit | / |
| Smoke Monitoring | / | |
| Vibration Monitoring | / | |
| Water Monitoring | / | |
| SMS alarm | / | |
| Door Open Alarm | When unlawfully opened, provide real-time alarm. | |
| Other | / | |
| Illumination | LED Illumination | Including one LED lamp and one lamp switch |
Dimension Diagram:
Pictures:
Details:
